繞組方式Winding Type —————————— Delta
霍爾電位角度Hall Effect angle ————————— 120o electrical angle

絕緣等級Insulation Class ———————— B
工作環境溫度Ambient Temperature Range ——— -20℃~+50℃
絕緣電阻Insulation Resistance —————— 100MΩ Min.500V DC
介電強度Dielectric Strength ———————— 700VAC 1minute

極數Number of Poles

8

相數Number of Phases

3

額定電壓Rated Voltage VDC

48

310

310

310

310

額定轉速Rated Speed RPM

3000

3000

3000

3000

3000

額定扭矩Rated Torque N-m

5

7.5

10

12.5

15

額定電流Rated Current Amps

38

9

12

15

18

輸出功率Output Power W

1570

2356

3141

3926

4712

峰值轉矩Peak Torque N-m

15

22.5

30

37.5

45

峰值電流Peak Current Amps

114

27

36

45

54

力矩常數Torque constant N-m/A

0.131

0.845

0.845

0.845

0.845

反電勢常數Back EMF V/kRPM

13.7

88.6

88.6

88.6

88.6

轉動慣量Rotor inertia Kg·cm2

7.2

10.8

14.4

18

21.6

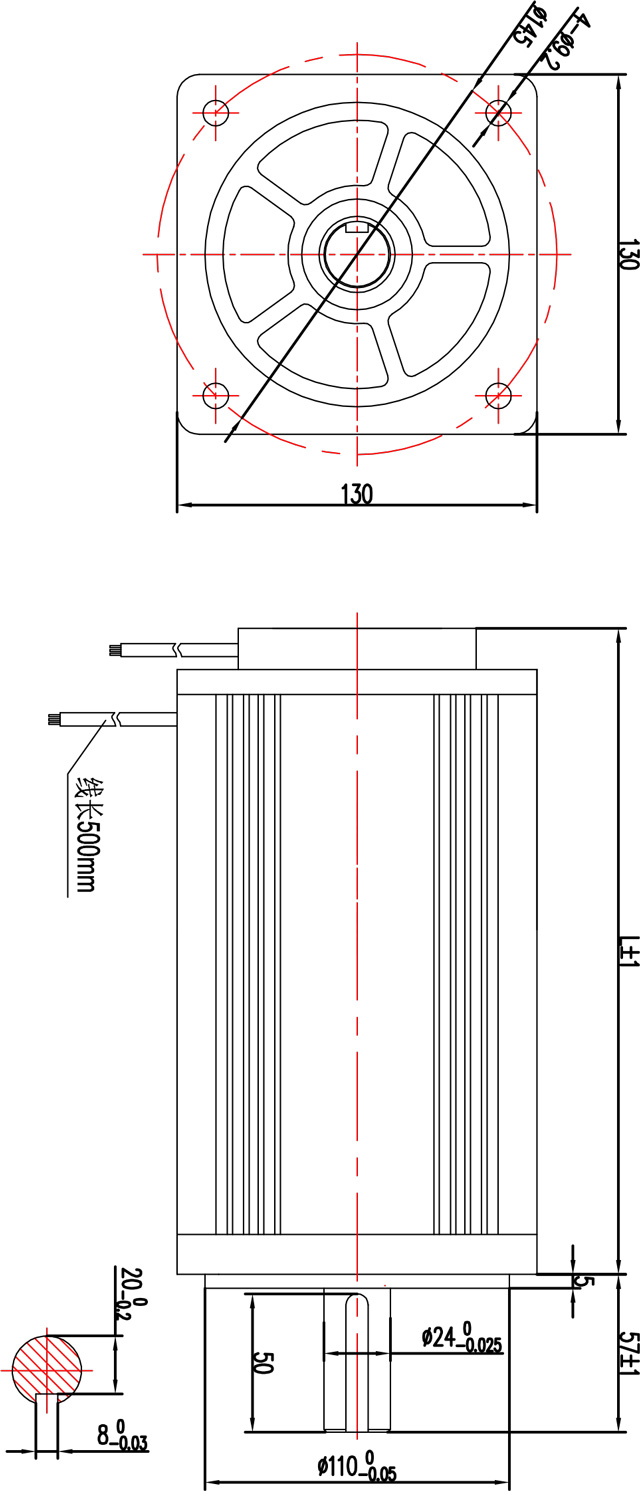

機身長Body Length (L) mm

158

183

208

233

258

重量Mass kg

7

9

11

13

15
